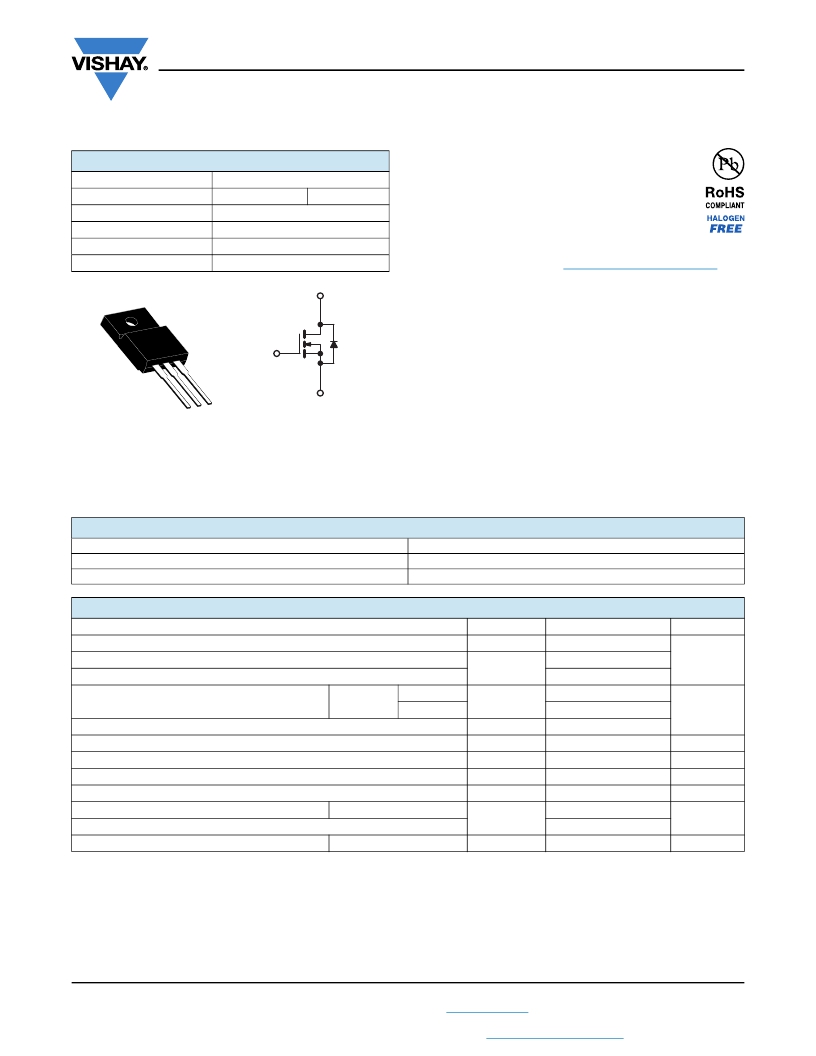

SiHF15N60E
www.vishay.com
E Series Power MOSFET
Vishay Siliconix
PRODUCT SUMMARY
V DS (V) at T J max.
R DS(on) max. at 25 °C ( ? )
Q g max. (nC)
Q gs (nC)
Q gd (nC)
V GS = 10 V
650
78
9
17
0.28
FEATURES
? Low Figure-of-Merit (FOM) R on x Q g
? Low Input Capacitance (C iss )
? Reduced Switching and Conduction Losses
? Ultra Low Gate Charge (Q g )
? Avalanche Energy Rated (UIS)
?
Material categorization: For definitions of
Available
Configuration
TO-220 FULLPAK
Single
D
compliance please see www.vishay.com/doc?99912
APPLICATIONS
?
Server and Telecom Power Supplies
?
Switch Mode Power Supplies (SMPS)
?
Power Factor Correction Power Supplies (PFC)
G
?
Lighting
- High-Intensity Discharge (HID)
- Fluorescent Ballast Lighting
G D S
S
N-Channel MOSFET
? Industrial
- Welding
- Induction Heating
- Motor Drives
- Battery Chargers
- Renewable Energy
- Solar (PV Inverters)
ORDERING INFORMATION
Package
Lead (Pb)-free
Lead (Pb)-free and Halogen-free
TO-220 FULLPAK
SiHF15N60E-E3
SiHF15N60E-GE3
ABSOLUTE MAXIMUM RATINGS (T C = 25 °C, unless otherwise noted)
PARAMETER
Drain-Source Voltage
Gate-Source Voltage
Gate-Source Voltage AC (f > 1 Hz)
SYMBOL
V DS
V GS
LIMIT
600
± 20
30
UNIT
V
Continuous Drain Current (T J = 150 °C) e
V GS at 10 V
T C = 25 °C
T C = 100 °C
I D
15
9.6
A
Pulsed Drain Current a
I DM
39
Linear Derating Factor
0.27
W/°C
Single Pulse Avalanche Energy b
Maximum Power Dissipation
Operating Junction and Storage Temperature Range
E AS
P D
T J , T stg
102
34
- 55 to + 150
mJ
W
°C
Drain-Source Voltage Slope
Reverse Diode dV/dt d
Soldering Recommendations (Peak Temperature) c
T J = 125 °C
for 10 s
dV/dt
37
7.7
300
V/ns
°C
Notes
a. Repetitive rating; pulse width limited by maximum junction temperature.
b. V DD = 50 V, starting T J = 25 °C, L = 11.6 mH, R g = 25 ? , I AS = 4.2 A.
c. 1.6 mm from case.
d. I SD ? I D , dI/dt = 100 A/μs, starting T J = 25 °C.
e. Limited by maximum junction temperature.
S13-1508-Rev. E, 08-Jul-13
1
Document Number: 91480
For technical questions, contact: hvm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
